PARAMOUNT’S PATENTED SDX® HIGH FLOW SAFETY DRAIN: NOW COMPLIANT WITH THE VIRGINIA GRAEME BAKER POOL AND SPA SAFETY ACT 2008.
FEATURES AND BENEFITS
NO SUMP REQUIRED - No need to chisel out a sump to meet the1.5 times the pipe diameter sump depth requirement.
SDX has a 1.485 feet per second velocity at the opening at a maximum listed 200 gpm.
Approved as a bulkhead fitting so the safety is in the cover and plate.
Patented “ribbed” design achieves high flow with sixty “mini” drains
Suction doesn’t transfer if one area is covered
Dome shape to prevent a seal by a swimmer
Anti-vortex shield blocks contact with direct suction
SDX retro® can be installed as a single cover with an SVRS installed on the line.

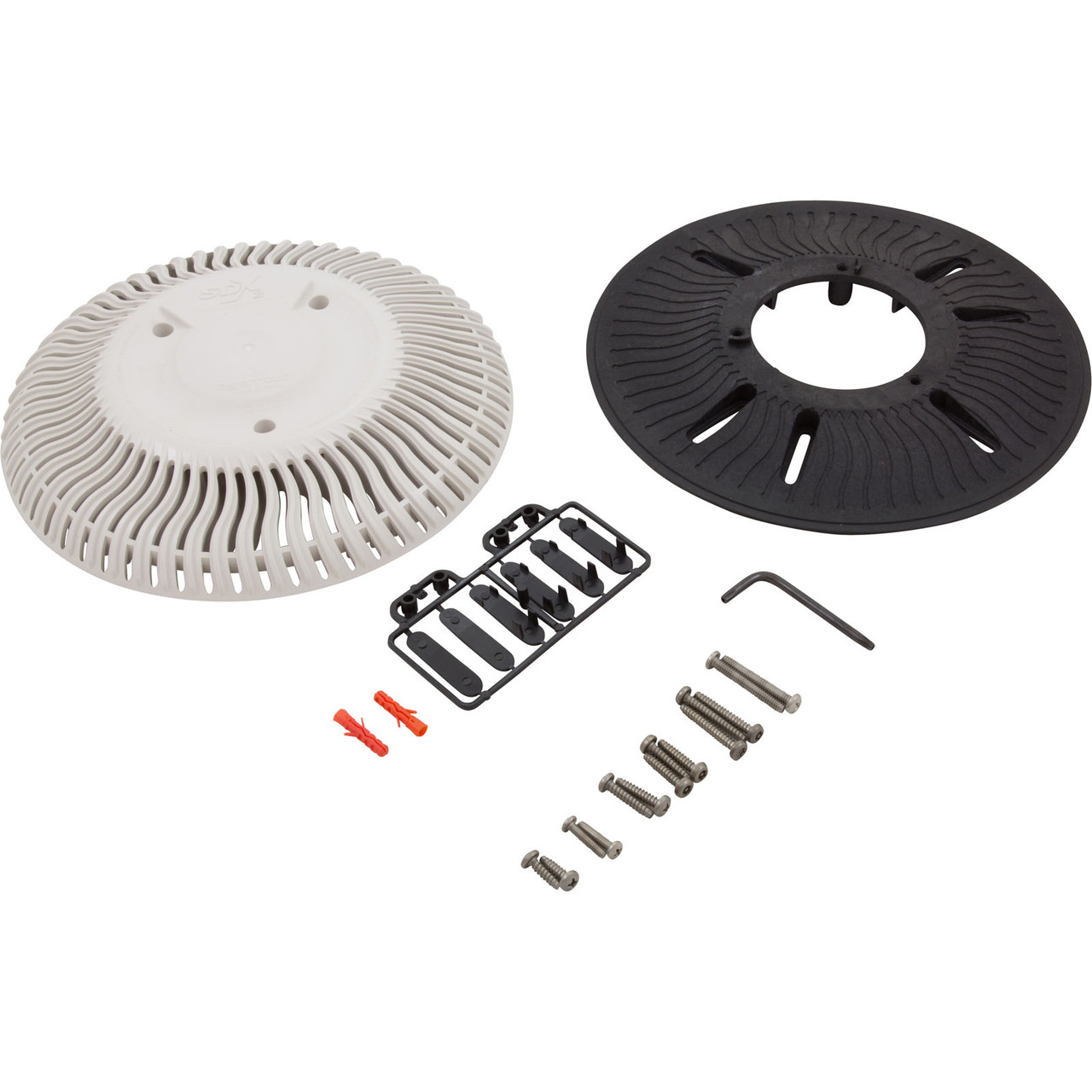

"Retro" version fits existing suction outlets up to 10” in diameter
Stainless steel security screws
Secondary support plate secured to protect the sump and fittings
"Equalizer" version eliminates chipping the interior surface around equalizer or smaller surface finished suction lines.
SDX® is a high flow suction outlet suitable for use as a wall fitting and also as a floor drain when debris removal is not a concern. A “Retro” version is available to bring existing suction outlet covers into compliance with the new law. SDX Retro® fits existing plaster rings up to 10” in diameter.
SDX® boasts a flow rating of 200 gpm on the floor and 192 gpm on the wall making it compatible with most residential pumps up to 3 hp. SDX has a 1.485 feet per second velocity at the opening at a maximum listed 200 gpm.
